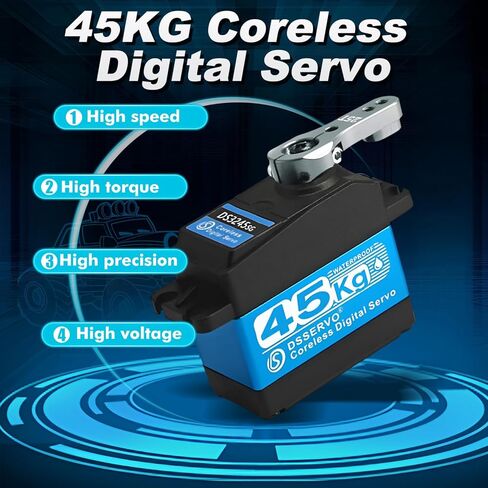

【Bset for 1/8 1/10 1/12 Scale Cars 】45kg Full Metal Gear Standard Servo is designed for rc steering servo 1/10, including RC off-road vehicles, crawlers, robotic arms, robots, remote control boats, and giant-scale aircraft. Ideal for demanding environments.
【Coreless Stainless Steel Gears for Durability & Quiet Operation】 The servo is equipped with coreless stainless steel gears, providing exceptional wear resistance and long-lasting durability. These high-performance gears ensure smooth, reliable operation while maintaining a low noise level, making it perfect for precision tasks in both indoor and outdoor environments. Built for reliability, they deliver consistent performance even under heavy use, ensuring your RC vehicles and robots operate smoothly for longer periods.

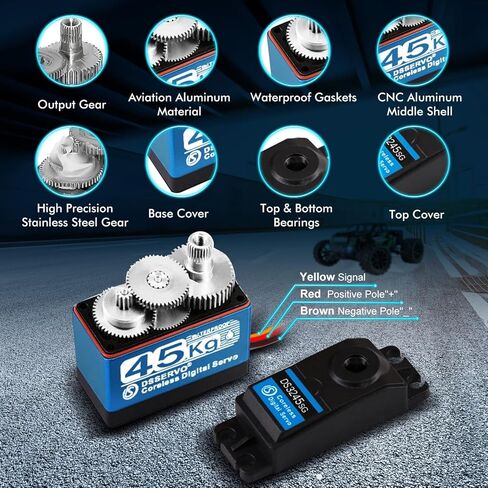

【Premium Quality for Long Working Life】 The servo is Maximum Torque Can Up to 51kg.cm(708.2oz-in),Speed sec/60°:0.11@8.4v built with high-precision steel gears and advanced potentiometers, combined with a high-resolution digital chip for superior performance. Its CNC-machined aluminum middle shell and waterproof rubber-sealed screws ensure exceptional durability and protection against the elements
【Premium Quality for Long-Lasting Reliability】 The servo is built with high-precision steel gears and advanced potentiometers, combined with a high-resolution digital chip for superior performance. Its CNC-machined aluminum middle shell and waterproof rubber-sealed screws ensure exceptional durability and protection against the elements. Crafted from first-grade materials, this servo delivers stable, reliable performance over time, making it the perfect choice for long-term

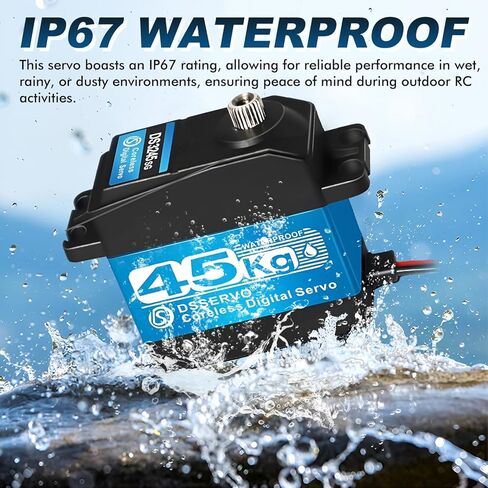

【IP67 Waterproof Rating for Ultimate Protection】 The servo features an advanced IP67 waterproof design, ensuring superior protection against dust, water, and other environmental factors. This design safeguards internal components, guaranteeing reliable and stable performance even in harsh, wet, or muddy conditions, making it perfect for off-road and outdoor applications.
وصف

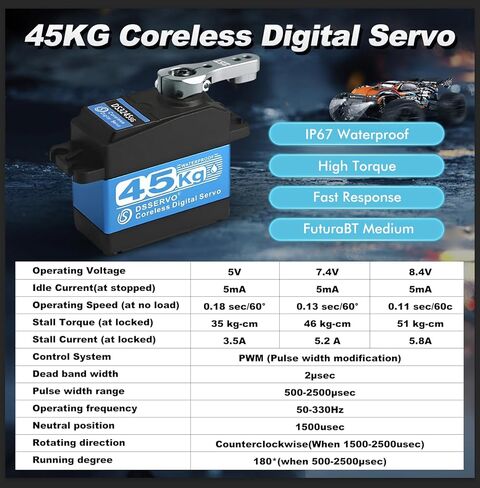

Electrical Specifications:
Operating Voltage Range: 5V – 8.4V
No Load Operating Speed:
5V: 0.18 sec/60°
7.4V: 0.13 sec/60°
8.4V: 0.11 sec/60°
Stall Torque (Locked):
5V: 35kg.cm (486oz-in)
7.4V: 46kg.cm (638.8oz-in)
8.4V: 51kg.cm (708.2oz-in)
Stall Current (Locked):
5V: 3.5A
7.4V: 5.2A
8.4V: 5.8A
Idle Current (Stopped): 5mA (at 5V, 7.4V, 8.4V)
Control Specifications:
Control System: PWM (Pulse Width Modulation)
Pulse Width Range: 500μsec – 2500μsec
Neutral Position: 1500μsec
Running Degree: 270° (with 500μsec to 2500μsec input)
Dead Band Width: 2μsec
Operating Frequency: 50Hz – 330Hz
Rotating Direction: Counterclockwise (1500μsec – 2500μsec)
Product Specifications:

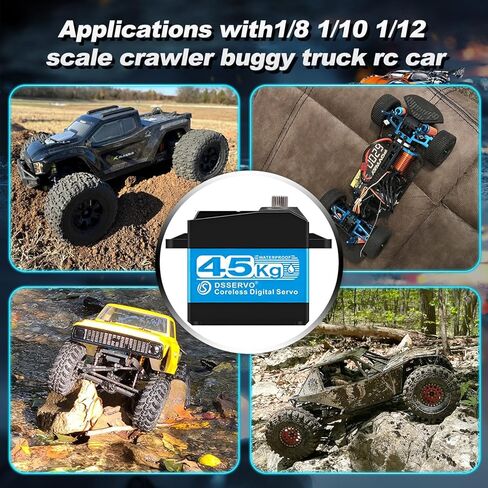

Ideal for: 1/8, 1/10, and 1/12 Scale RC Cars, Trucks
Motor Type: Coreless Motor
Gear Type: Stainless Steel (Ensures durability and smooth operation)
Spline: 25 Tooth
Gear Ratio: 342
Bearings: Double Bearings for enhanced reliability
Waterproof Rating: IP67 (Perfect for off-road and wet conditions)
Connector Wire Length: 17.7in (450mm)

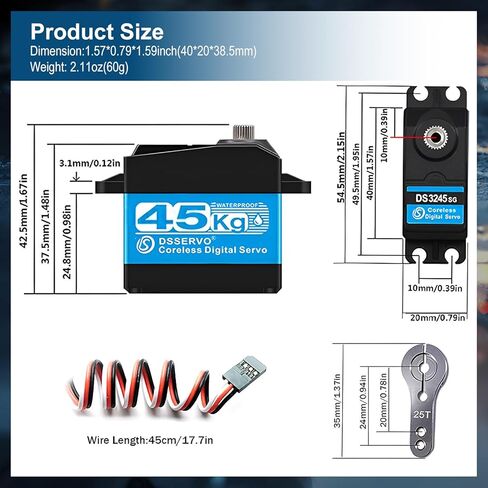

Size: 1.57 x 0.79 x 1.59 inches (40 x 20 x 38.5mm)
Weight: 2.11oz (60g)
Certifications: CE / RoHS Certified
Environmental Conditions:
Storage Temperature Range: -30°C to 80°C
Operating Temperature Range: -25°C to 70°C

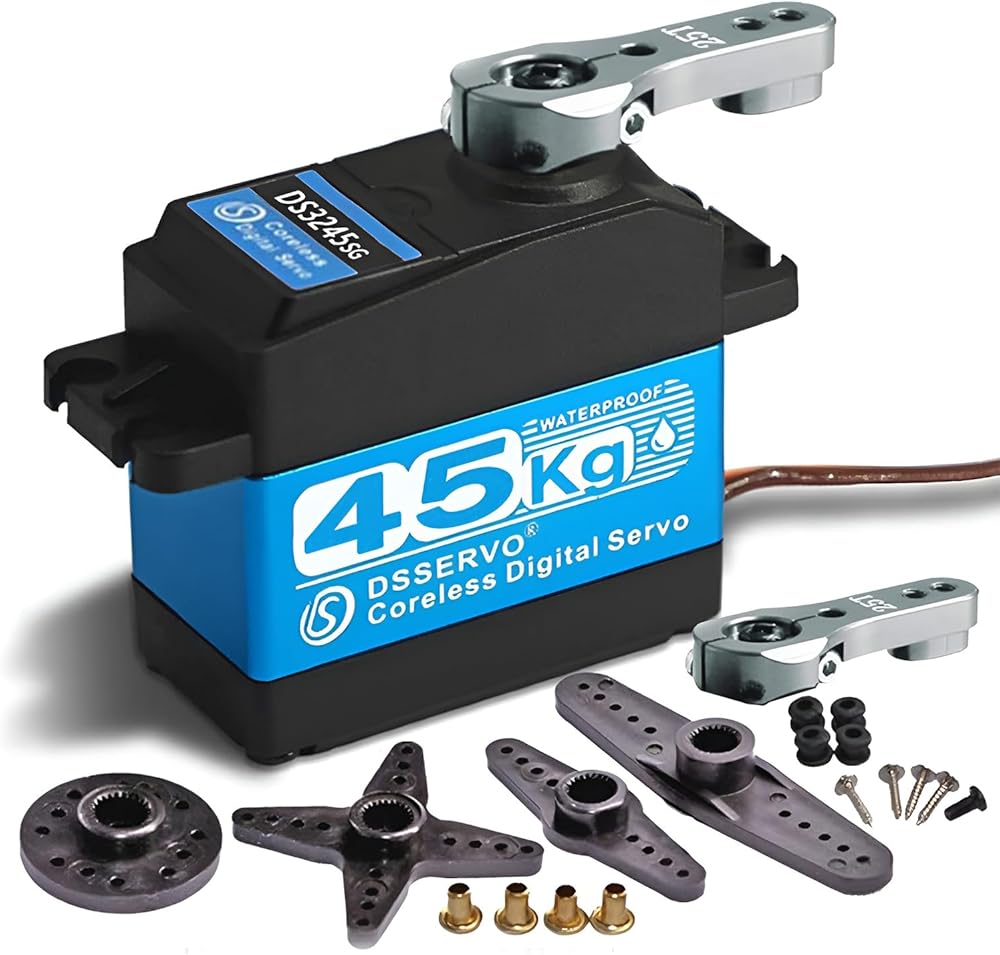

Package Includes:
1 x DS3245SG 45kg Servo 180° Rotation
2 x 25T Adjustable Metal Servo Arm
1 x Accessories Set (As shown in the image)
