Specifications:

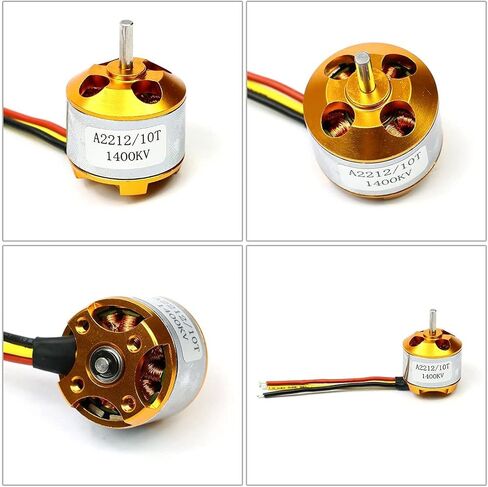

A2212 1400KV Brushless Outrunner Motor
KV: 1400
Max Efficiency: 80%
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: 27.5 x 30mm
Shaft Diameter: 3.17mm
Weight: 47g

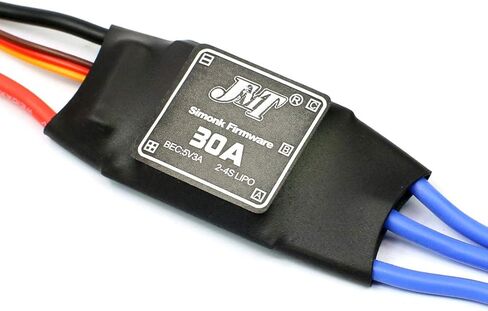

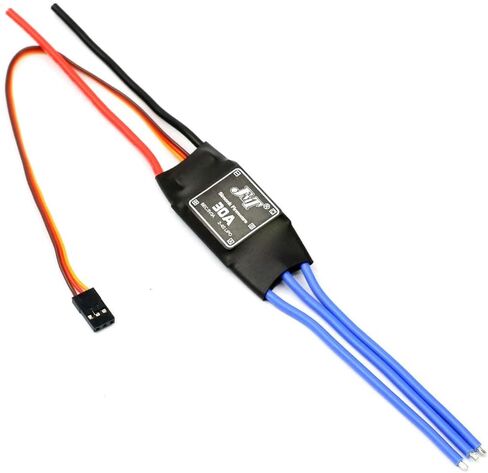

DT-30A Brushless ESC

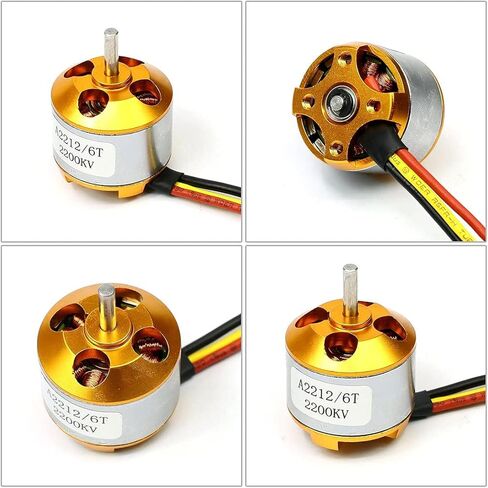

A2212 2200KV Brushless Outrunner Motor
KV: 2200
Max Efficiency: 80%
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3S Li-Poly 11.1V
Motor Dimensions: 27.5 x 30mm
Shaft Diameter: 3.17mm
DT-30A Brushless ESC
Attention:
This ESC do not have the English instruction.
Before producing, the manufacturer have set up the program, the ESC do not need additional program.
The ESC need to be calibrated before you use
Here is the calibration steps:Turn on the remote control, adjust the throttle to the highest, power on, turn off the power after hearing the slow beep. Power on again, after the two drops are heard, the throttle is adjusted to the lowest level. After hearing the long beep, turn off the power, turn off the remote control, the ESC calibration is completed.
Pls note:Do not install propellers when you calibrate ESC, otherwise it is dangerous.

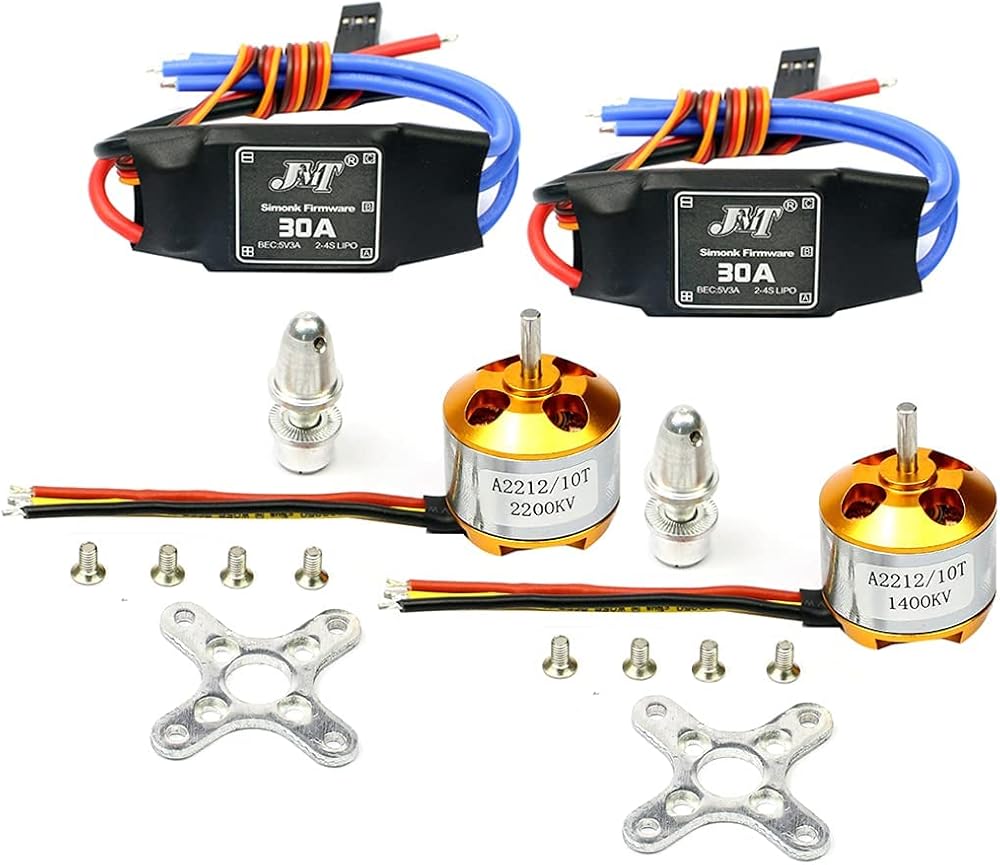

Package includes:
2* 30a Speed Controller
1* 1400kv Brushless Outrunner Motor with Mount
1* 2200kv Brushless Outrunner Motor with Mount
