Mechanical Specification

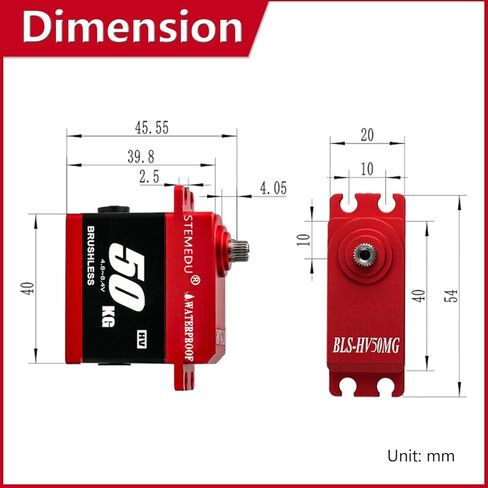

Size: 40.0*20.5*39.8mm
Weight: 85g±5%
Gear type: 5 Metal
Limit angle: 360°
Bearing: 2BB
Horn gear spline: 25T Dia: 5.95mm
Horn type: Plastic, POM

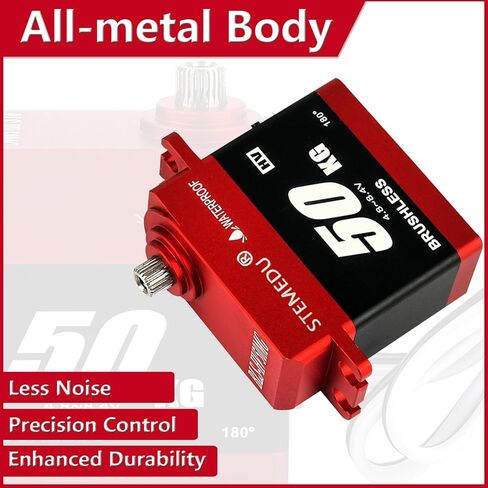

Case: Aluminum alloy
Connector wire: 300mm±5mm

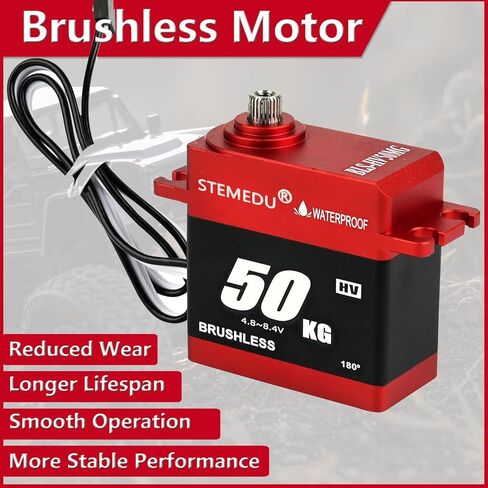

Motor: Brushless

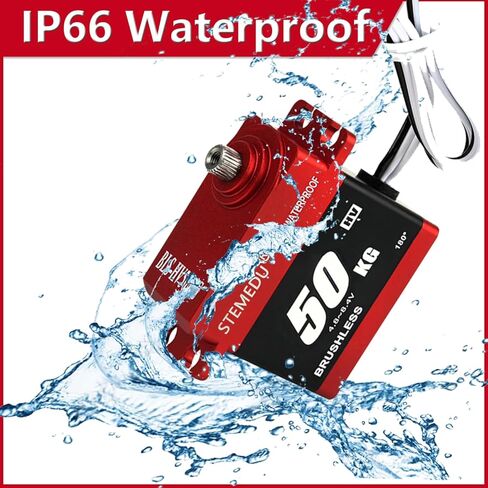

Splash water resistance: IP66

Electrical Specification
Operating voltage: 4.8V-8.4V
Idle current: ＜40mA
No load speed: 0.14sec/60° (@4.8V), 0.12sec/60° (@6.0V), 0.09sec/60° (@7.4V), 0.08sec/60° (@8.4V)
Runnig current: 500mA-800mA (@4.8V-6.0V), 700mA-1200mA (@7.4V-8.4V)
Peak stall torque: 47kg.cm (@4.8V), 49kg.cm (@6.0V), 51kg.cm (@7.4V), 53kg.cm (@8.4V)
Stall current: 7000-8000mA (@4.8V), 8000-9000mA (@6.0V), 9000-10000mA (@7.4V), 10000-11000mA (@8.4V)

Control Specification
Command signal: Pulse width modification
Amplifier type: Digital controller
Pulse width range: 500～2500usec
Neutral position: 1500usec

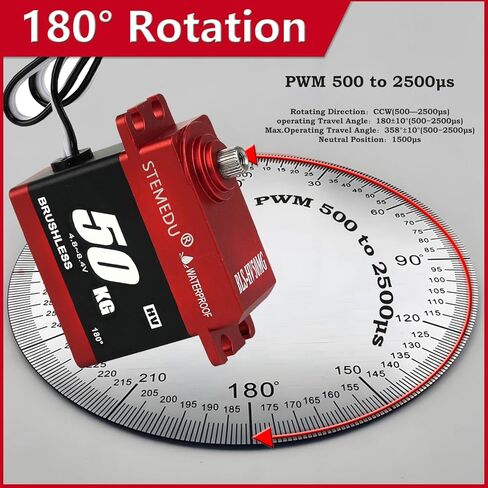

Running degree: 180°±3°(when 500～2500usec)
Dead band width: 3 usec
Rotating direction: Counterclockwise (when 1000～2000usec)

Apply Environmental Condition
Storage Temperature Range: -30°C～80°C
Operating Temperature Range: -10°C～60°C

Standard Test Environment
Temperature Range: 25℃±5℃
Humidity Range: 65%±10%

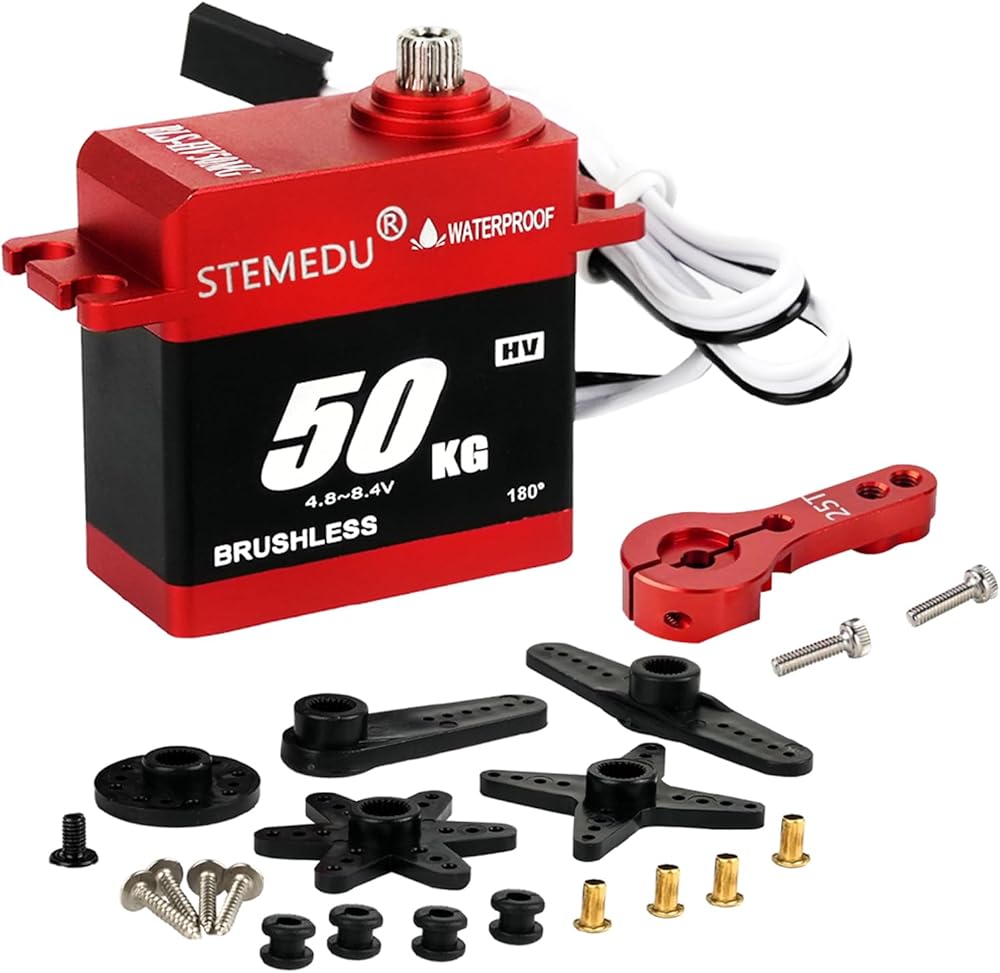

Package Includes:
1 x BLS-HV50MG 50KG All-metal Brushless Motor Servo
1 x 25T servo horn arm
1 x Accessories pack
