Made by Hot Racing; Hot Racing is a United States based company; parts are sourced from Chinese producers
All Hot Racing upgrade parts are direct replacements for stock components; additional parts are not required

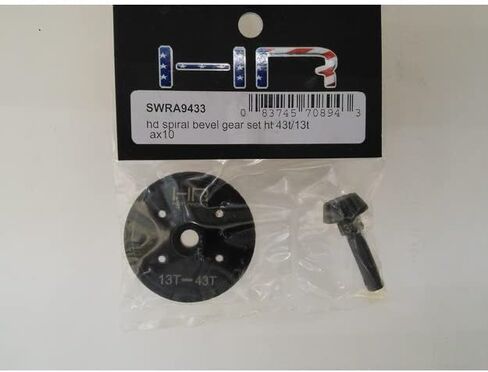

Hot Racing part number SWRA9433; UPC 083745708943
This item works with: Axial AX-10 Deadbolt, AX-10 Ridgecrest Crawler, EXO 4WD Terra Buggy Kit, RR-10 Bomber, SCX-10 Scale Truck, SMT10 Grave Digger Monster Jam Truck, Wraith 4WD Rock Racer RTR, Yeti
وصف

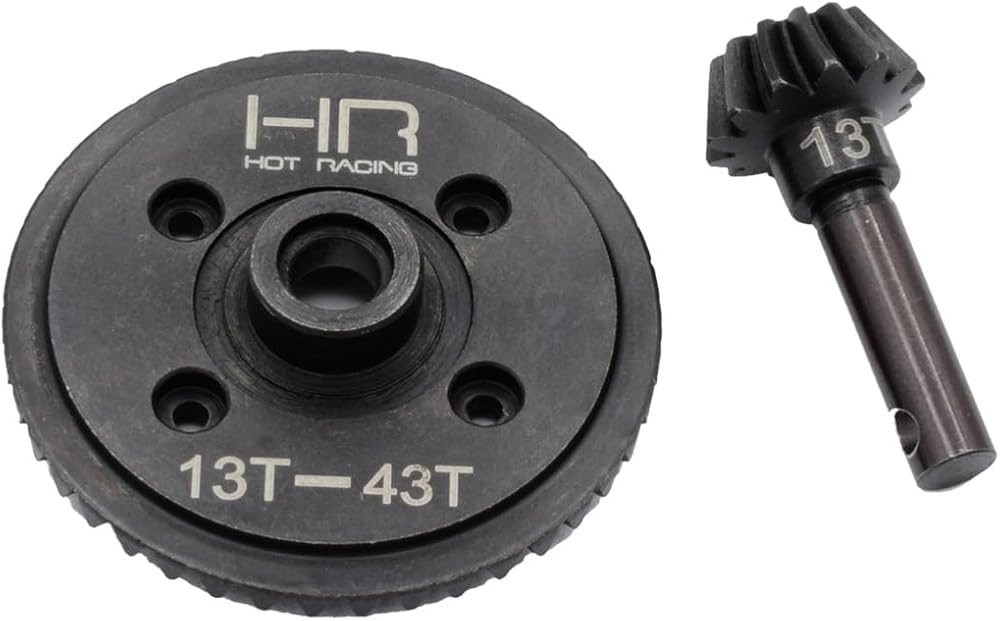

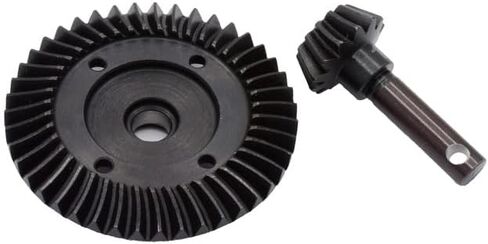

Hot Racing steel helical spiral 13% underdrive 43T/13T gear set for 1/10 Axial AX10, EXO, RR10 Bomber, SCX10, SMT10, Wraith, and Yeti.
FEATURES:
- Precision machined helical spiral cut gears offer inherently greater strength and smooth operation than the factory bevel cut gears
- High carbon steel construction
- Stronger than the stock bevel-cut zinc cast gears
- 43T/13T provides 13% gear reduction (vs stock 38T/13T) to increase available torque to ground
YOU WILL RECEIVE:
- One (1) 43 tooth diff spiral cut ring gear
- One (1) 13 tooth spiral cut pinion gear
REQUIREMENTS:
- Installation following kit manual
- One M3x2.5x11mm (Axial AXA0175 or Hot Racing SSP311) or M3x2.5x12mm (Axial AXA176) screw shaft for driveshaft attachment
- Do not use the stock M3x3mm setscrew (Axial AXA180), if originally equipped.
- Medium threadlock (blue threadlocking compound) if screws are threaded into metal
- Hot Racing SPL10G05 high temp grease recommended
COMMENTS:
- Replaces Axial AX30392 38/13T bevel-cut zinc cast gears
- Hot Racing gear set options include: SWRA9364 (36T/14T overdrive ratio), SWRA9383 (38T/13T stock ratio), SWRA9433 (43T/13T underdrive ratio)
description revised by: SN July 9, 2018
