مميزات خاصة

High Torque & Fast Performance: Achieve up to 105kg.cm (1458oz-in) of maximum torque and a fast speed of 0.19 sec/60° at 8.4V, making this servo ideal for heavy-duty industrial robots, robotic arms, and remote-controlled vehicles that require exceptional power and precision.
Durable Steel Gears & Waterproof Design: Built with high-precision steel gears and waterproof rubber seals, this servo is designed to handle challenging environments, ensuring reliable performance even in harsh conditions. The CNC aluminum middle shell ensures superior durability and heat dissipation.
Versatile Applications: Perfect for a wide range of uses, including robotic arms, humanoid robots, bipedal and multipedal robots, PTZ monitoring equipment, and RC vehicles. This servo offers outstanding versatility and control for both industrial applications and hobbyist projects.
Reliable & Stable Operation: Featuring a high-resolution digital chip and precise potentiometers, this servo guarantees smooth and stable operation. It offers low noise, strong anti-interference capability, and high accuracy for precise control with a 270° range and 360° rotation when powered off.
Complete Set for Easy Installation: Includes free U-brackets and accessories for easy mounting and setup. The extended 45mm power wire ensures convenient integration, and the servo is built to deliver reliable, long-lasting performance in demanding applications.

وصف

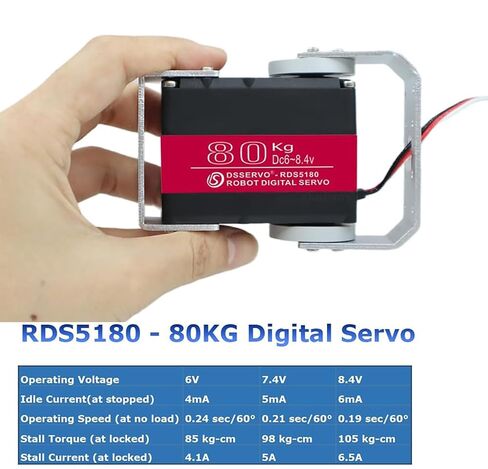

Product Specifications:
Operating Voltage Range: 6V to 8.4V
Operating Speed:
6V: 0.24 sec/60°
7.4V: 0.21 sec/60°
8.4V: 0.19 sec/60°
Stall Torque:
6V: 85kg.cm (1180.5oz-in)
7.4V: 98kg.cm (1360.9oz-in)
8.4V: 105kg.cm (1458oz-in)
Stall Current:
6V: 4.1A
7.4V: 5A
8.4V: 6.5A
Idle Current:
6V: 4mA
7.4V: 5mA
8.4V: 6mA
Control System: PWM (Pulse Width Modulation)
Pulse Width Range: 500-2500μsec
Operating Frequency: 50-330Hz
Rotation Direction: Counterclockwise (when 1500-2500μsec)
Motor Type: 3-pole motor
Gear Type: Steel Gear
Bearing: Double Bearing
Size: 2.55 x 1.18 x 1.88 inches (65 x 30 x 48mm)
Weight: 5.75oz (163g)
CE/RoHS Certified

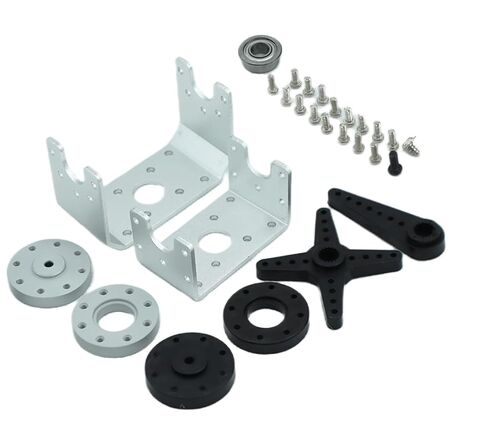

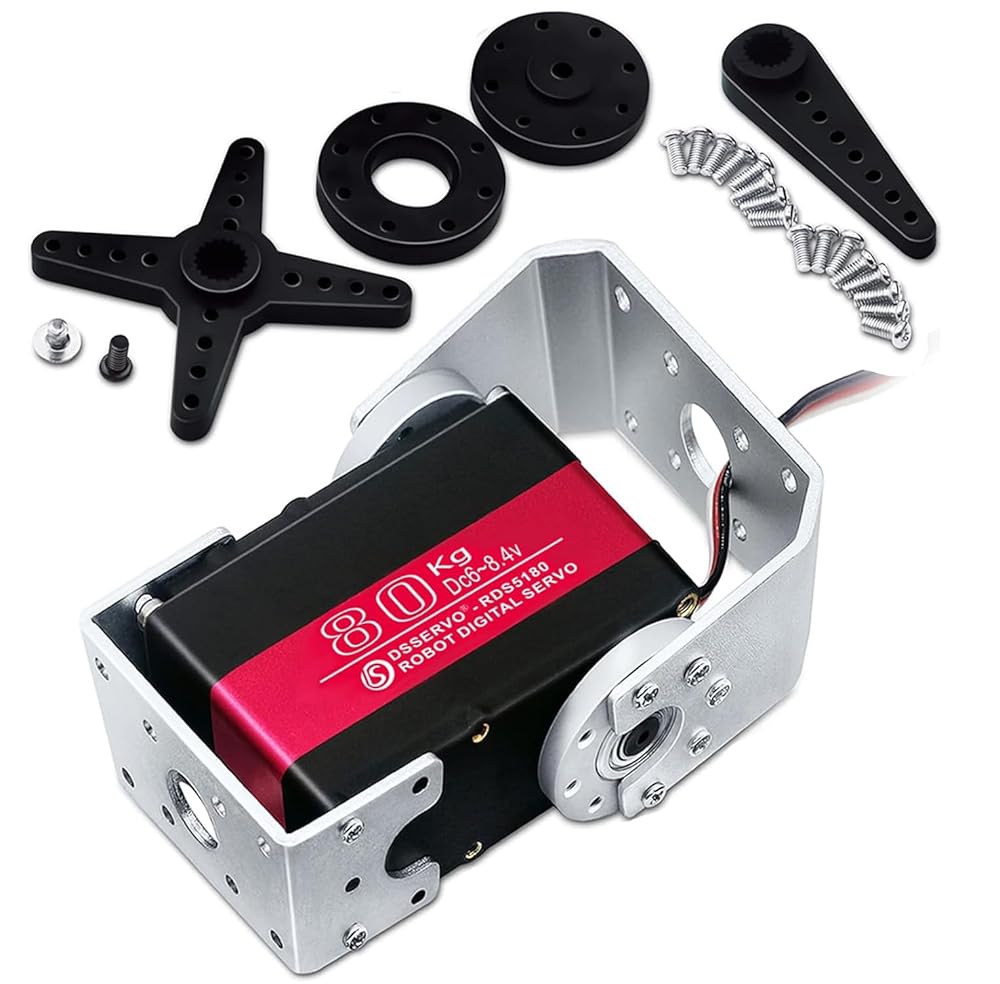

What's in the Box:
1 x RDS5180SG 80kg Robot Servo
2 x U-Shaped Aluminum Holders
2 x Aluminum Circle Discs
One Set of Plastic Accessories (As Shown in the Picture)
Why Choose the RDS5180SG Servo?

The RDS5180SG servo provides unmatched power,RC vehicles. Whether you're upgrading your RC rig, building an advanced robotic arm, or working with other high-demand systems, this servo offers the precision and strength you need to get the job done. With its waterproof design, high torque, and fast response times, it's the perfect addition to any heavy-duty project.
