Overdrive Gearbox DLX LCG Trans OD-3 Overdrive Transmission for 1/10 RC Crawler LCG Chassis SCX10 III Pro Capra

KWD 14.500
– 1 +

مميزات خاصة

  • If you are a performance crawler player, you should not miss out on this high-quality 1:10 Overdrive transmission produced by HooCrawler.
  • High strength aluminum case Heat treated alloy steel gears At the same time, it is equipped with a 3D printed cover and a smooth bottom plate made of POM material.
  • 3.66:1 gearing, plus 44T spur gear. Uses 48P pinion gears from 9 to 17 teeth.Use 12T pinion gear as a starting point for most AR44 applications with overdrive front gears.
  • Extremely lightweight and durable, the enclosed metal shell adopts a hard anodizing process, which is scratch resistant and corrosion-resistant.
  • 18.6% overdrive (both outputs spin same direction, so no need for flipped ring gears).28% overdrive when used with underdrive rear ring and pinion.38% overdrive when used with underdrive and overdrive ring and pinion.

وصف

Product Details

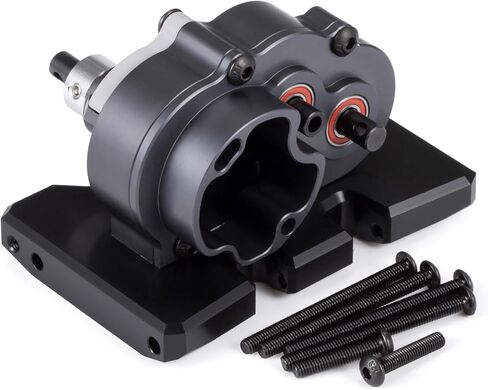

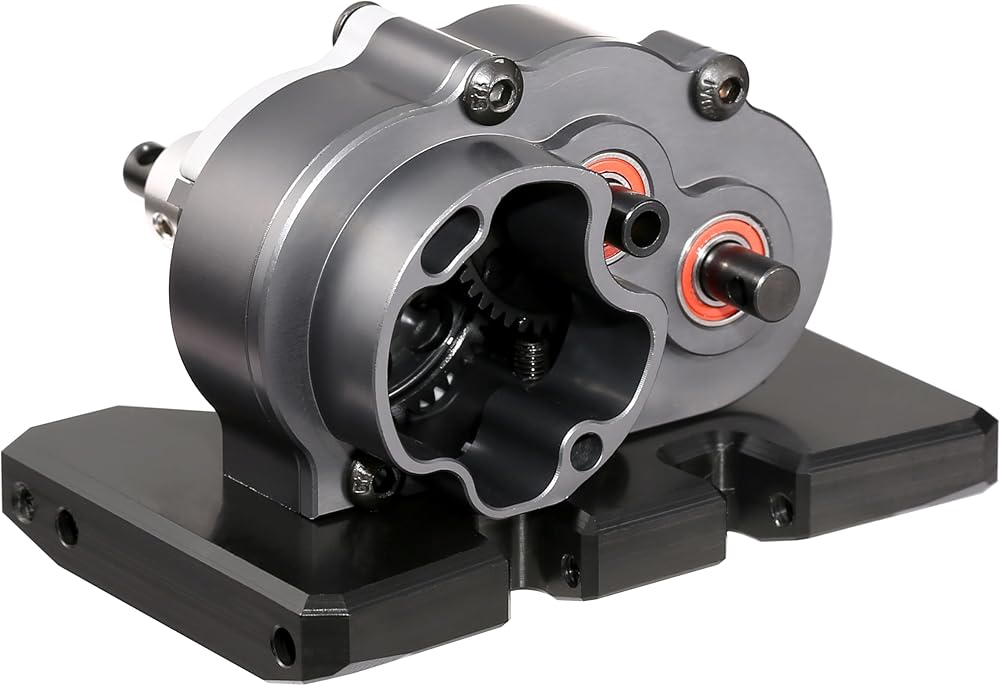

HooCrawler Overdrive Transmission:

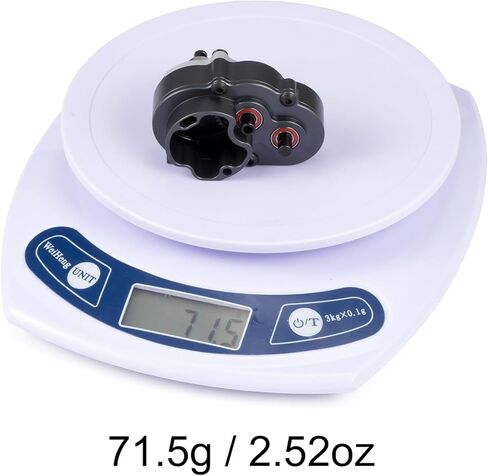

Extremely compact and lightweight 70.0g / 2.46oz （not include base plate）

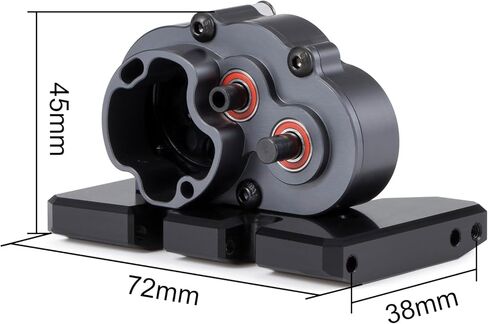

Dimensions, in mm:(35Lx59Wx36H)
Designed for motor forward mounting.
Mounting is accomplished by two M3 tapped holes, 23.0mm center to center (not angled).
Fully Enclosed.
7075 high strength aluminum case.
Heat treated alloy steel gears.
Grade 5 Titanium output shafts.
3.66:1 gearing, plus 44T spur gear.
Uses 48P pinion gears from 9 to 17 teeth.
Use 12T pinion gear as a starting point for most AR44 applications with overdrive front gears.
18.6% overdrive (both outputs spin same direction, so no need for flipped ring gears).
28% overdrive when used with underdrive rear ring and pinion.
38% overdrive when used with underdrive and overdrive ring and pinion.
