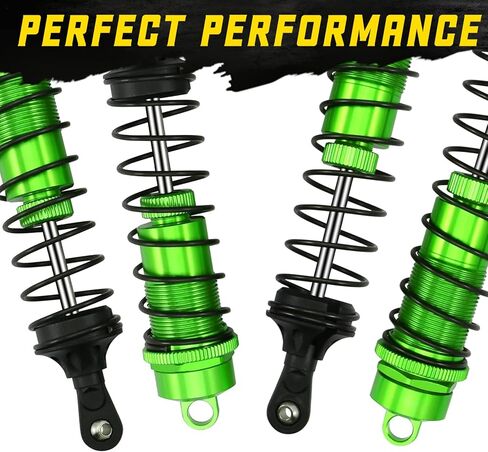

Revolutionary Shock PerformanceThese Big Rock V3 shocks redefine 1/10 scale RC suspension dynamics. The extended 68mm/2.68" stroke length (25% longer than stock) allows wheels to maintain ground contact on 45° inclines, while the 16mm/0.63" bore diameter ensures precise oil control during high-speed impacts. Hard-anodized 6061-T6 aluminum bodies resist rock abrasion and corrosion in harsh off-road conditions.
Advanced Damping Technology3-stage Teflon-coated piston (1.2mm/0.047" orifice)
650cst silicone oil pre-filled for progressive damping
Adjustable rebound via 12-click collar (0.5mm/click)
Integrated bladder system prevents cavitation
Spring Specifications PositionRateWire DiameterLength Front3.0 lb/in2.0mm/0.079"75mm/2.95" Rear4.5 lb/in2.4mm/0.094"85mm/3.35" Installation BenefitsDirect replacement for stock ARA4312V3 shocks
14mm/0.55" eye-to-eye matches factory mounts

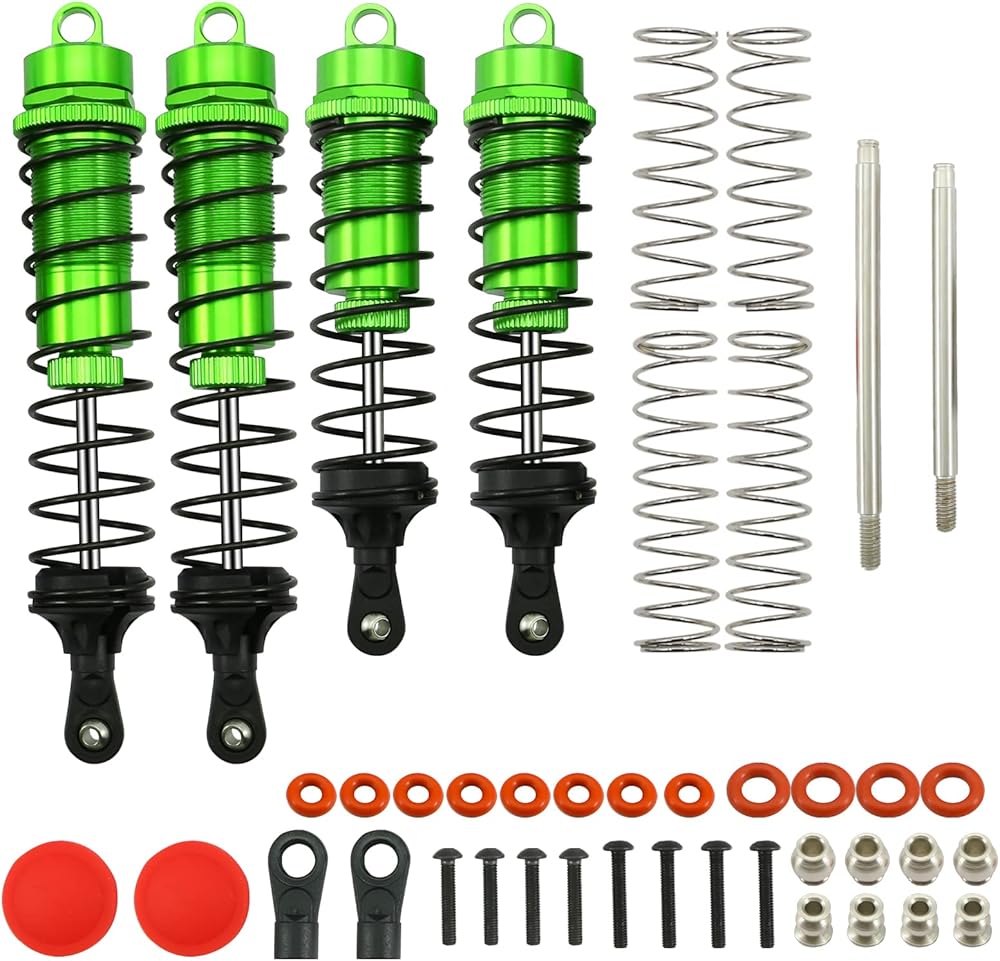

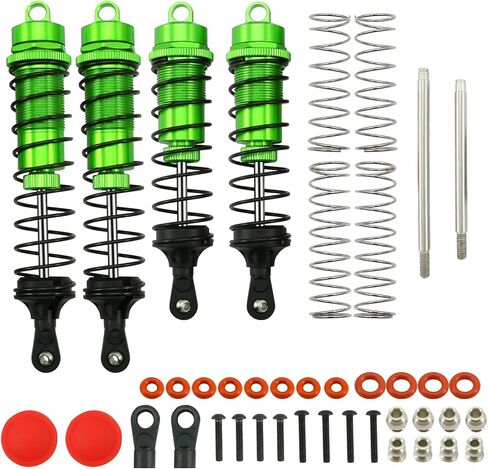

Includes 8x M4 titanium turnbuckles (35mm/1.38")
Pre-installed 8x12x3mm bearings for smooth articulation
Technical SummaryMaterial: 6061-T6 Aluminum Body / 304 Stainless Shaft
Oil Capacity: 15cc per shock
Stroke: 68mm/2.68" (Compressed 50mm/1.97")
Compatibility: ARA4312V3, ARA102690, ARA102692
Pro Tip: Combine with 50wt shock oil (sold separately) for desert racing setups. Rebuild every 50 runtime hours using included seal kit.
