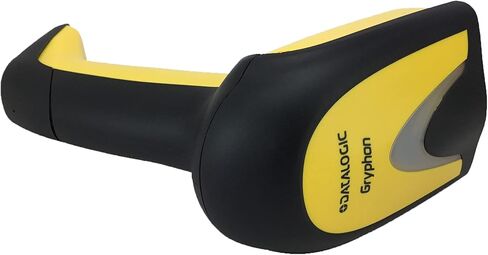

Direct Part Marking (DPM) is a process that allows users to imprint a bar code directly on an item instead of printing the code on a paper label. Different technologies are available to directly mark objects: laser / chemical etching, dot peening and ink jet printing. Each of these methods have specific advantages and disadvantages in terms of durability, cost and ease of reading. The Gryphon GD4430-DPM 2D imager is an area imager specifically conceived to address DPM code reading in electronic industries.

The intuitive aiming system provides the highest first-pass reading rates. A softpulsed white illumination light results in reduced flashes and is very gentle to the eyes. The highly visible 4-Dot aimer provides a clear indication of the reading area, making targeting codes quick and easy. Datalogic's patented ‘Green Spot' technology provides additional visual good-read confirmation which is ideal for quiet environments like bedside patient care.

Specifications:
Brand:Datalogic
Model: GD4430-DPM
Handheld:Yes
Corded:Yes
Color:Black/Yellow
Decoding Capability: DPM, 1D / Linear Codes (Autodiscriminates all standard 1D codes) and 2D Codes (Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code), Postal Codes, PDF417
Interfaces:USB/RS-232/Keyboard Wedge/Wand Multi-Interface
Operating Temp:32 F to 122 F (0 C to 50 C)
Storage Temperature:-4 F to 158 F (-20 C to 70 C)
Drop specifications:Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface
Dimensions:7.1 in. x 2.8 in. x 3.9 in. / 18.1 cm x 7.1 cm x 10.0 cm
Weight: 6.9 oz. (195.0 g)

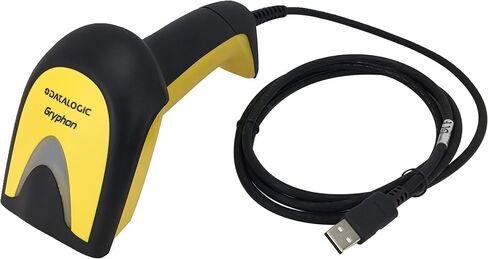

Package Includes:
One Barcode Scanner

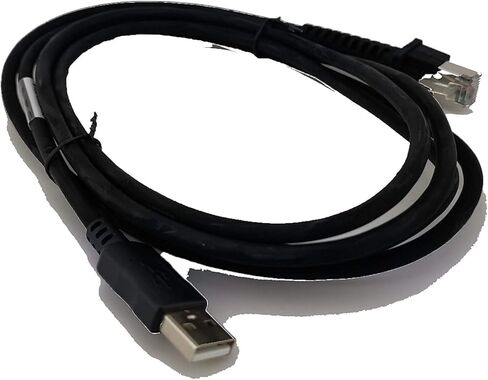

One USB Cable
One manual
