Features:
★ 4 Pole 6 Slot Hi-torque Motor Design
★ CNC Machined 6061 T6 Billet Aluminum Heatsink Can
★ High Purity Copper Windings Maximizes Efficiency
★ High RPM ABEC5 Oversized Bearings
★ Universal fit,fits all 1/10th brushless cars-multi-mounting system for M3 screws
★ Precision balanced rotor,smoothness for best reliability and maximum RPM
★ Stator - Super Thin (0.35mm) Laminations
★ Removable/Replaceable Rotor
★ Precision Engineered for Maximum Energy Conversion

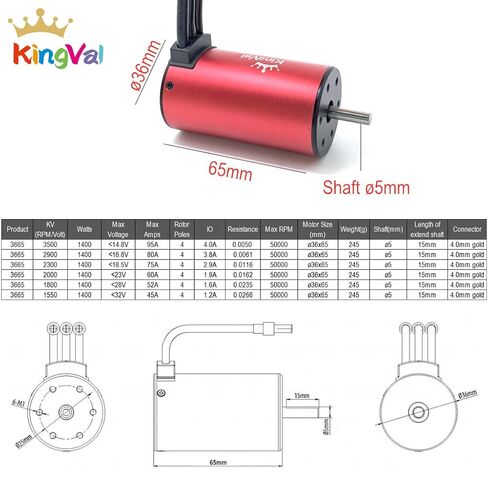

Specification:
Brand: KingVal

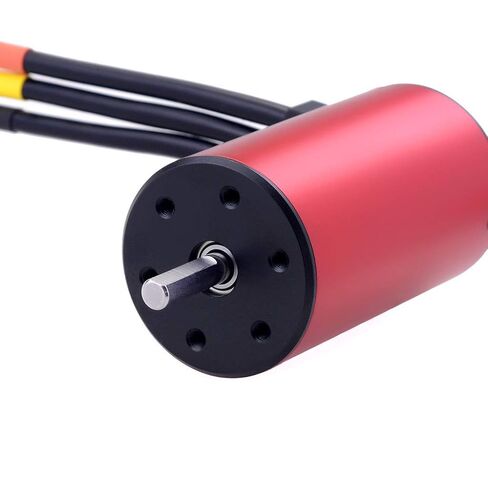

Product: Waterproof 3665 Brushless Motor
KV(RPM/Volt): 2000
Watts: 1400
Max voltage:
Max Amps: 60A
Rotor Poles: 4
IO: 1.9A
Resistance: 0.0162
Max RPM: 50000
Shaft: ø5.0mm
Lenght of extend shaft: 15mm

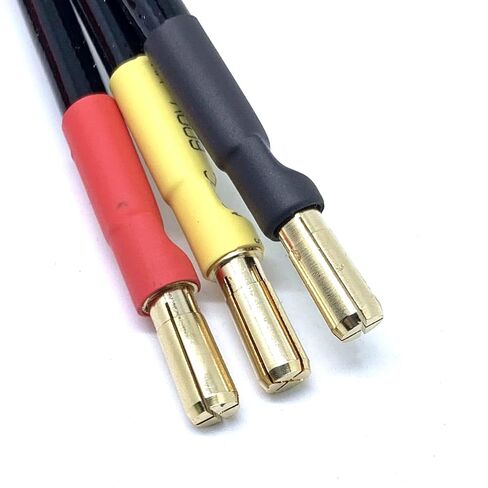

Connector: 4.0mm gold

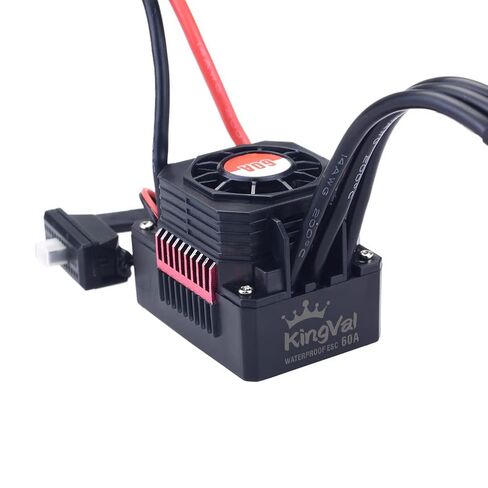

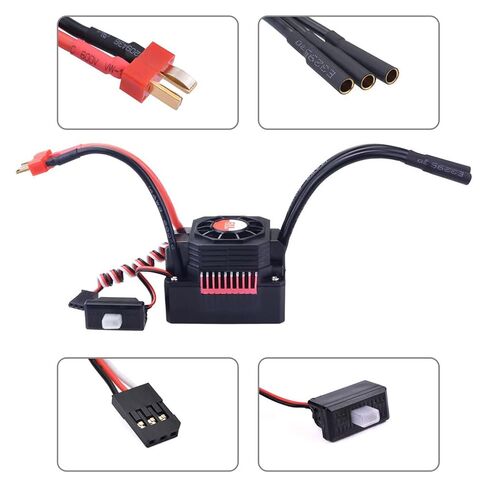

60A ESC:
Cont.Current/Burst Current: 60A/360A
Motor Type: Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH :
1. on-road: 3660-Size or smaller motor with the KV
2. off-road/Buggy/Monster: 3660-size or smaller motor with the KV
For 3S Lipo or 9 cells NiMH :
1. on-road: 3660-Size or smaller motor with the KV
2. off-road/Buggy/Monster: 3660-size or smaller motor with the KV
Suitable Car: 1/10 Car
Resistance: 0.0007ohm
Battery: 2-3S Lipo/4-9Cells NiMH
BEC Output: 5.8V/3A(analog mode)
Size: 51.5 x 38.5 x 38.5mm
Weight: 76g
Package List:

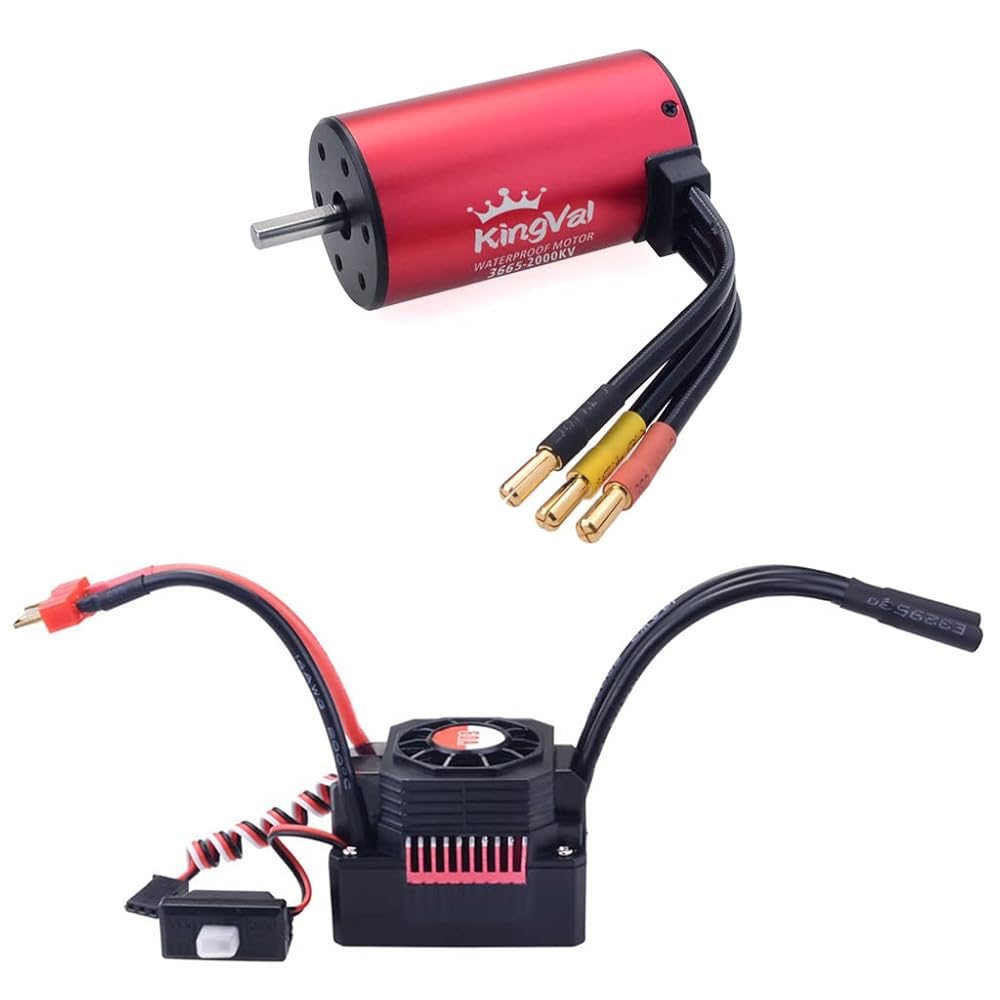

1 x 3665 Brushless Motor
1 x 60A Brushless ESC
1 x Manual
