Features:
* 4 Pole 6 Slot Hi-torque Motor Design
* CNC Machined 6061 T6 Billet Aluminum Heatsink Can
* High Purity Copper Windings Maximizes Efficiency
* High RPM ABEC5 Oversized Bearings
* Universal fit,fits all 1/18th,1/20th brushless cars-multi-mounting system for M2.5 screws
* Precision balanced rotor,smoothness for best reliability and maximum RPM
* Stator - Super Thin (0.35mm) Laminations
* Removable/Replaceable Rotor
* Precision Engineered for Maximum Energy Conversion

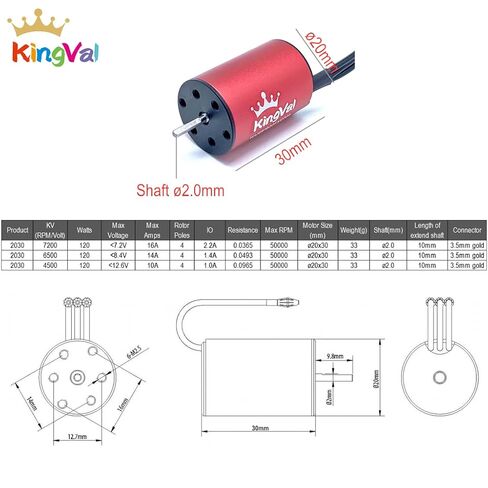

Specifications:
Brand: KingVal
KV(RPM/Volt): 4500
Watts: 120
Max voltage:
Max Amps: 10A
IO:1.0A
Resistance:0.0965
Rotor Poles: 4
Max RPM: 50000
Shaft: Φ2.0mm
Length of extend shaft: 10mm
Connector: 3.5mm gold
N.W:33g

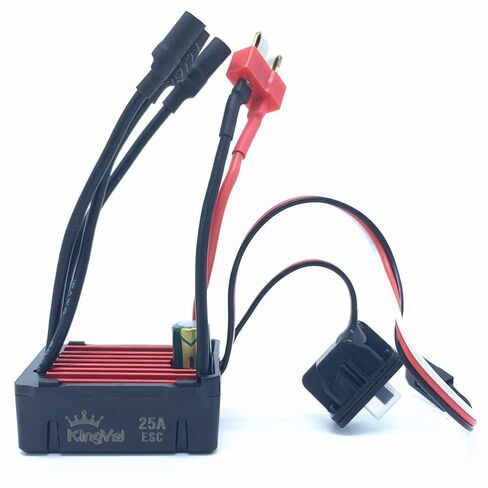

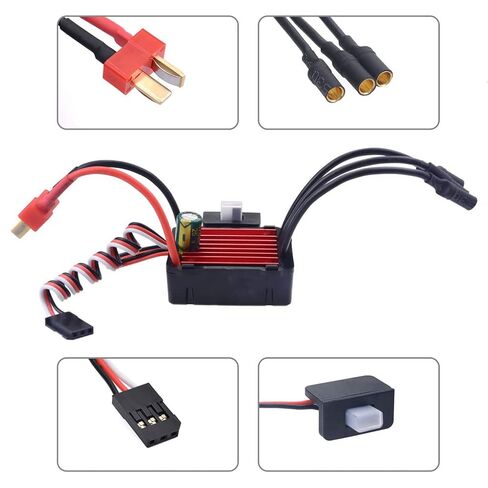

25A ESC:
Model: 25A
Continuous / maximum current: 25A/100A
Adaptation Motor: Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH:
1.on-road:24XX-size or smaller motor with the KV
2. Off-road / Buggy / Monster: 24XX-size or smaller motor with the KV
Applicable models:1/20, 1/18, 1/16 car
Resistance: 0.0014ohm
Battery: 2 cells Lipo
4~6 cells NiMH
BEC output
5.0V/2A (analog mode)
Size / single weight 40*32*15/33g

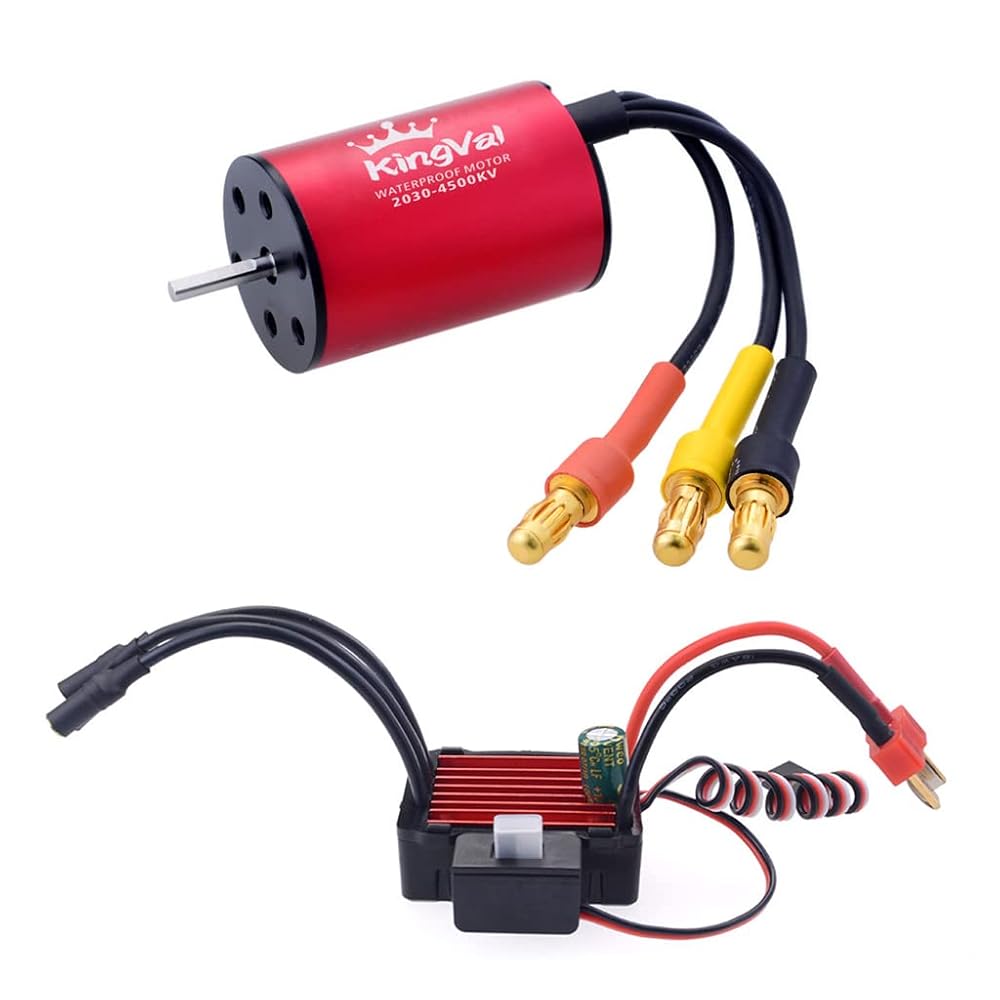

Package List:
1 x Motor
1 x 25A ESC
2 x Manual
