How to Use:
1. After fixing the motor, link the battery assembly to the electronic speed controller (ESC).
2. Link the corresponding colors of the three wires of the motor to the governor. If the direction of rotation is incorrect, just change any two wires.
3. Connect the receiver, the third receiving channel (CH3) to the electronic governor, and start the test.

Specification:

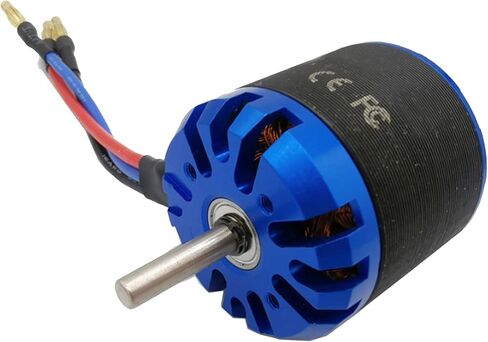

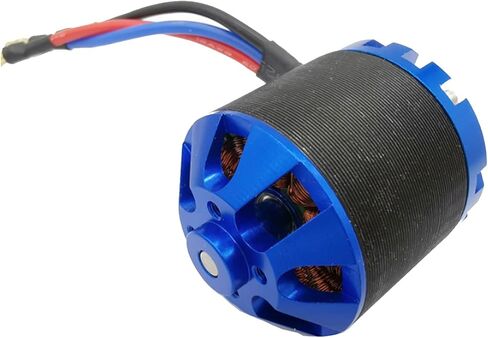

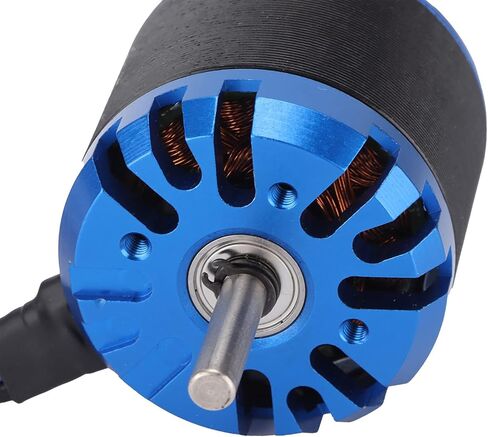

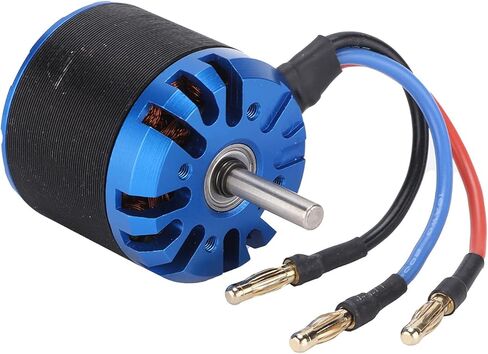

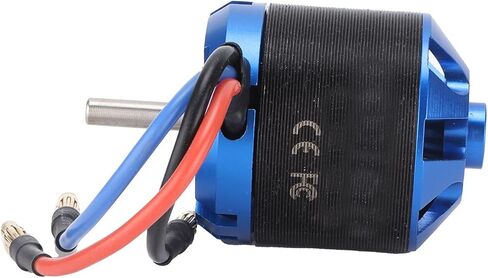

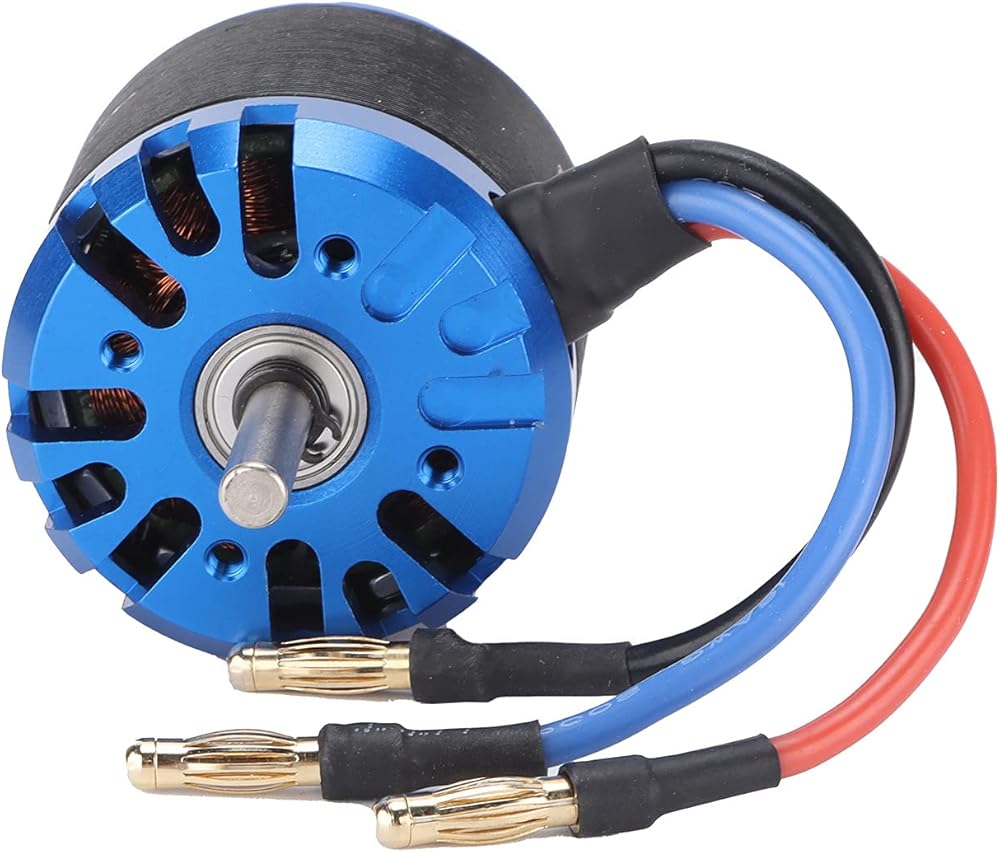

Item Type: 4250 800KV Brushless Motor
Model: 4250
Material: Aluminum Alloy + Copper
Product Color: Black and Blue
Motor Size: Approx. 50x42mm / 2.0x1.7in
Product Weight: Approx. 280g / 9.9oz
KV: 800KV
Maximum Power: 1250W
Adapter Blade: 13x10/14x7/14x10
Support Battery: 7.4-14.8V
Recommended ESC: 100A
Compatible: Fit for RC Fixed-wing Aircraft with 4.0mm Banana Plug

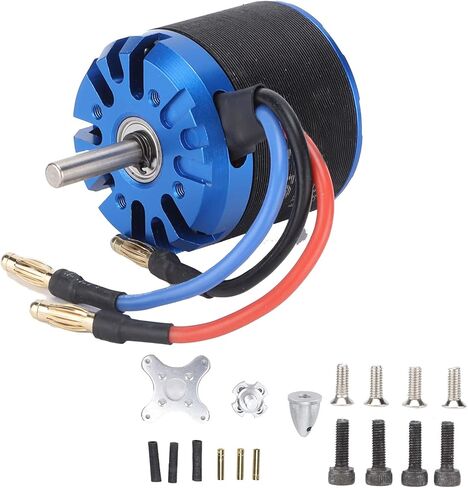

Package List:
1 x Brushless Motor
1 x Seat
1 x Paddle Clip
1 x Fixed Nut
3 x Heat Shrink Tube
3 x 4.0mm Banana Plug
8 x Screw
1 x Manual

Note:
1. Please allow 1‑3mm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
