Specifications
Input Voltage: 2-3S LiPo
BEC Output: 6.5V/5A
Motor Type: 540/550/750 Motors
Waterproof: YES
Product weight: 60g/2.12oz

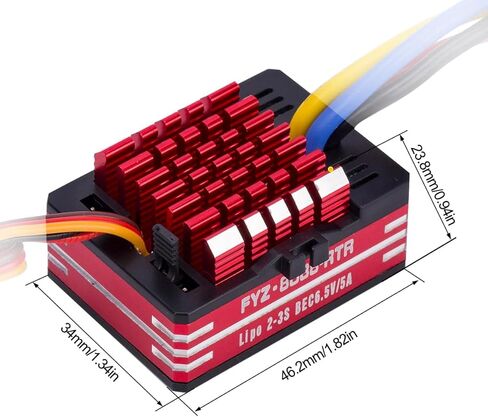

Product size: 46.2*34*23.8mm/1.82*1.34*0.94in

Discriptions
8 Low internal resistant, high current MOS transistors applied
Overheat protection, low battery voltage cutoff, and throttle automatic detection
Multifunctional parameter settings, jumper cap adjustment, simple and convenient
The ESC must be switched OFF first. Make sure the adjustable tabs are properly inserted in
accordance to battery type selection
Center the trigger and the throttle trim, and turn up the D/R EPA to the maximum
witch on the ESC. Do not operate until the ESC has beeped
Beeping:
The ESC will beep once if a Ni-MH battery is used
The ESC will beep twice if a 2S Li-Po battery is used
The ESC will beep three times if a 3S Li-Po battery is used
Low battery voltage cutoff: The red LED will flash slowly and the ESC will cut off power immediately when the batteryis dying
Overheat Care: The ESC will reduce the power by 50% in the event that the internal temperature reaches 100 Celsius degrees The ESC will resume as long as it drops down to 80 Celsius degrees
