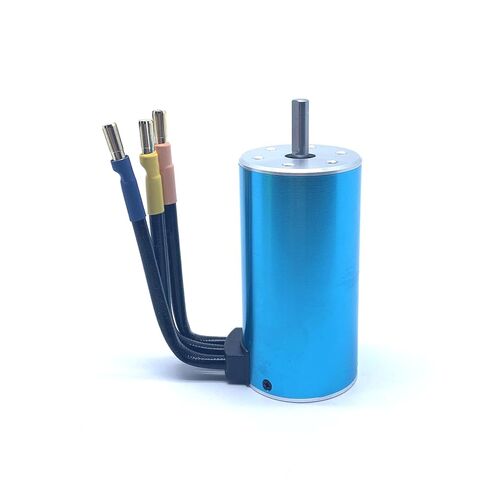

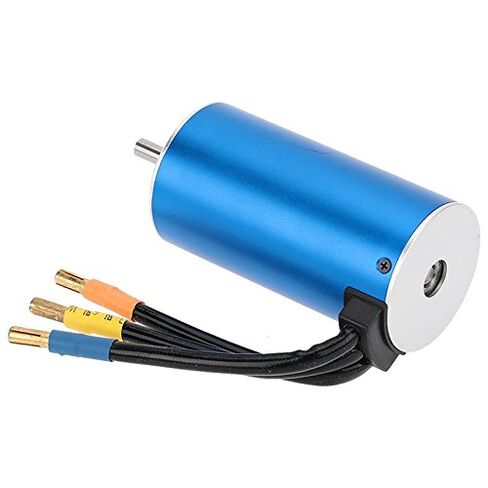

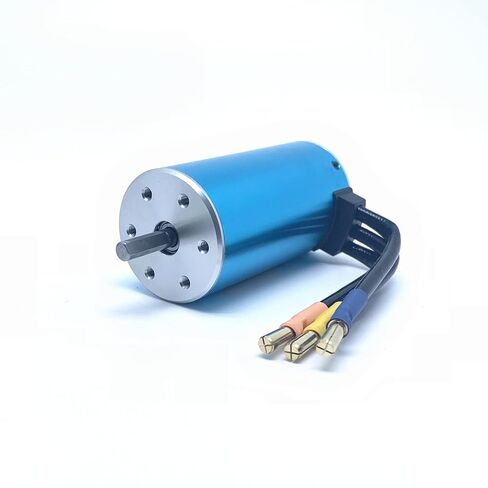

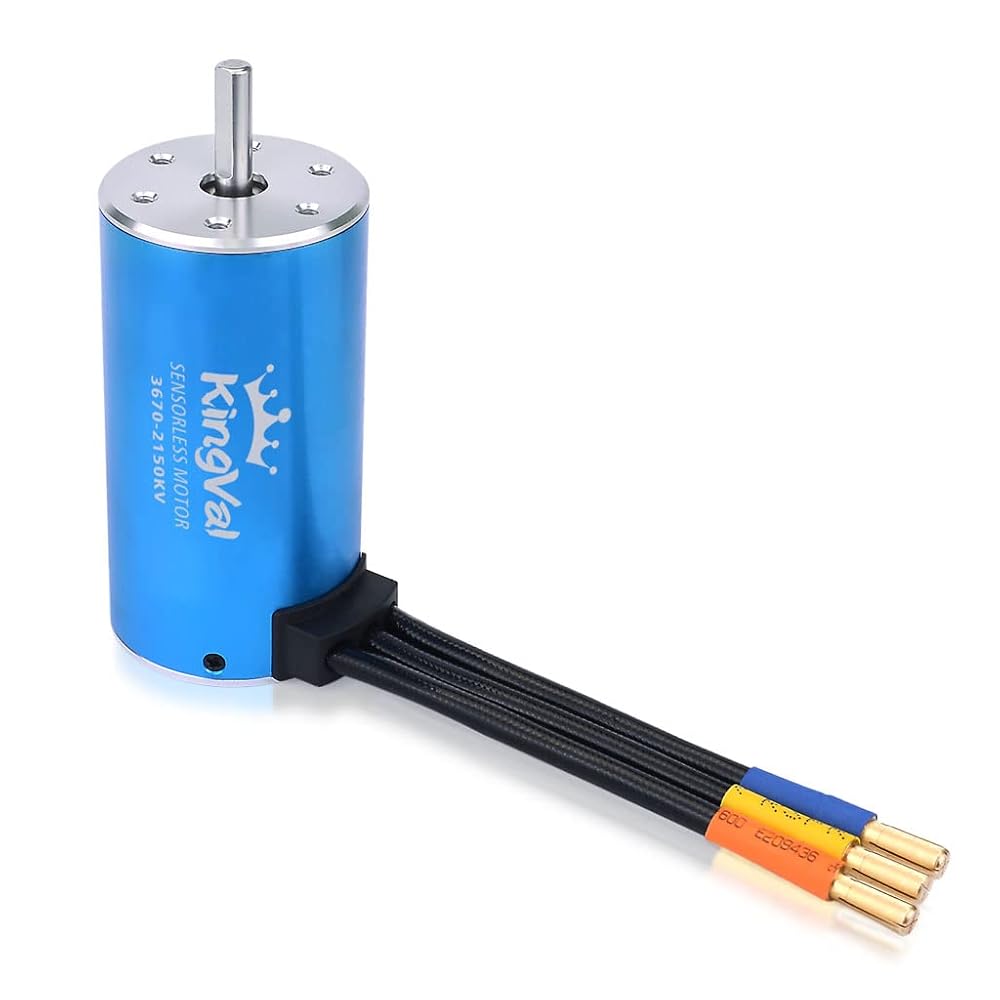

استبدال Kingval 3670 2150KV Sensfless Motor Switch Diameter 5.0mm متوافق مع 1/8 1/10 RC CAR

KWD 15.500
مقاس2150 كيلو فولت
أسلوبمستشعر 3670
– 1 +

مميزات خاصة

  • 4 Poles 12 Slot Hi-torque Motor Design
  • CNC Machined 6061 T6 Billet Aluminum Heatsink Can
  • High Purity Copper Windings Maximizes Efficiency; High RPM ABEC5 Oversized Bearings
  • Universal fit, fits all 1/8 1/10 Brushless cars-multi-mounting system for M3 screws
  • Precision Balanced Rotor, Smoothness for best reliability and maximum RPM

وصف

Features:
* 4 Poles 12 Slot Hi-torque Motor Design
* CNC Machined 6061 T6 Billet Aluminum Heatsink Can
* High Purity Copper Windings Maximizes Efficiency
* High RPM ABEC5 Oversized Bearings
* Universal fit, fits all 1/8 1/10 Brushless cars-multi-mounting system for M3 screws
* Precision Balanced Rotor, Smoothness for best reliability and maximum RPM
* Stator - Super Thin (0.35mm) Laminations
* Removable/Replaceable Rotor
* Precision Engineered for Maximum Energy Conversion
Specification:
Brand: KingVal
Product: 3670 Sensorless Motor
Motor Size: ø36x70mm
KV(RPM/Volt): 2150
Max Voltage:
Max Amps: 70A
IO: 3.0A
Resistance: 0.0121
Rotor Poles: 4
Max RPM: 50000
Watts: 1600
Shaft: ø5mm
Length of extend shaft: 17mm
Connector: 4.0mm gold
N.W: 275g
Package List:
1 x 3670 Sensorless Motor
1 x Manual
